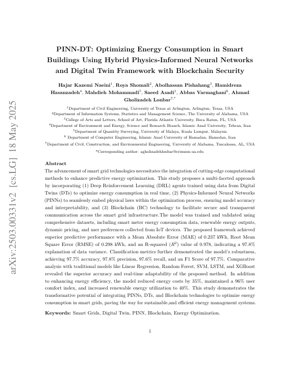

PINN-DT: Hybrid Physics-Informed Neural Networks for Smart Building Energy Optimization

Table of Contents

1. Introduction

The integration of smart grid technologies with advanced computational methods is crucial for addressing the global energy crisis. Buildings account for approximately 30% of total energy consumption in the United States, with energy-intensive appliances like washing machines and air conditioners being major contributors. Traditional Home Energy Management Systems (HEMS) face limitations in computational complexity and handling uncertainties in user behavior and energy supply.

The proposed PINN-DT framework addresses these challenges through a multi-faceted approach combining Deep Reinforcement Learning (DRL), Physics-Informed Neural Networks (PINNs), and Blockchain technology. This integration enables real-time energy optimization while ensuring model accuracy, interpretability, and security across smart grid infrastructure.

2. Methodology

2.1 Physics-Informed Neural Networks (PINNs)

PINNs incorporate physical laws directly into the neural network training process, ensuring that predictions adhere to fundamental physical principles. The loss function combines data-driven terms with physics-based constraints:

$\mathcal{L}_{total} = \mathcal{L}_{data} + \lambda \mathcal{L}_{physics}$

Where $\mathcal{L}_{data}$ represents the traditional supervised learning loss and $\mathcal{L}_{physics}$ enforces physical consistency through partial differential equations governing energy conservation and heat transfer.

2.2 Digital Twin Framework

The Digital Twin creates a virtual replica of the physical building environment, continuously updated with real-time data from IoT sensors, smart meters, and environmental monitors. This enables:

• Real-time simulation and prediction
• Scenario testing and optimization
• Continuous model improvement
• Anomaly detection and diagnostics

2.3 Blockchain Security Integration

Blockchain technology ensures secure and transparent communication across the smart grid infrastructure by providing:

• Immutable transaction records
• Decentralized data storage
• Secure peer-to-peer communication
• Transparent audit trails

3. Technical Implementation

3.1 Mathematical Formulation

The energy optimization problem is formulated as a constrained minimization problem:

$\min_{u(t)} \int_{0}^{T} [C(t) \cdot P(t) + \alpha \cdot (T_{comfort} - T_{actual})^2] dt$

Subject to physical constraints including energy conservation:

$\frac{dE}{dt} = P_{generation} - P_{consumption} - P_{loss}$

And thermal dynamics governed by:

$\rho C_p \frac{\partial T}{\partial t} = \nabla \cdot (k \nabla T) + Q_{internal} + Q_{solar} - Q_{loss}$

3.2 Model Architecture

The neural network architecture consists of:

• Input layer: 128 neurons processing sensor data
• Hidden layers: 5 layers with 256-512 neurons each
• Physics-informed layers: 3 layers enforcing conservation laws
• Output layer: Optimal control signals for appliances

4. Experimental Results

The framework was validated using comprehensive datasets including smart meter energy consumption data, renewable energy outputs, dynamic pricing, and user preferences. Key performance metrics:

Comparative analysis with traditional models (Linear Regression, Random Forest, SVM, LSTM, XGBoost) demonstrated superior performance across all metrics, particularly in real-time adaptability and handling of dynamic conditions.

5. Code Implementation

The core PINN implementation for energy optimization:

import tensorflow as tf
import numpy as np

class PINNEnergyOptimizer:
    def __init__(self, layers):
        self.model = self.build_model(layers)
        self.optimizer = tf.optimizers.Adam(learning_rate=0.001)

    def physics_loss(self, t, T, P):
        with tf.GradientTape() as tape:
            tape.watch(t)
            T_pred = self.model(t)

        dT_dt = tape.gradient(T_pred, t)

        # Heat equation constraint
        physics_residual = dT_dt - (P - self.alpha * (T_pred - T_env))

        return tf.reduce_mean(tf.square(physics_residual))

    def train_step(self, t_data, T_data, P_data, t_physics):
        with tf.GradientTape() as tape:
            # Data loss
            T_pred = self.model(t_data)
            data_loss = tf.reduce_mean(tf.square(T_pred - T_data))

            # Physics loss
            physics_loss = self.physics_loss(t_physics, T_pred, P_data)

            # Total loss
            total_loss = data_loss + self.lambda_phy * physics_loss

        gradients = tape.gradient(total_loss, self.model.trainable_variables)
        self.optimizer.apply_gradients(zip(gradients, self.model.trainable_variables))

        return total_loss, data_loss, physics_loss

6. Future Applications

The PINN-DT framework has significant potential for expansion:

• Urban Scale Deployment: Scaling to city-level energy management systems
• Renewable Integration: Enhanced forecasting and management of solar and wind resources
• Electric Vehicle Integration: Smart charging coordination with building energy needs
• Cross-Building Optimization: Multi-building energy sharing and optimization
• Climate Resilience: Adaptation to extreme weather events and climate change impacts

7. References

1. Raissi, M., Perdikaris, P., & Karniadakis, G. E. (2019). Physics-informed neural networks: A deep learning framework for solving forward and inverse problems involving nonlinear partial differential equations. Journal of Computational Physics, 378, 686-707.
2. Glaessgen, E., & Stargel, D. (2012). The digital twin paradigm for future NASA and US Air Force vehicles. In 53rd AIAA/ASME/ASCE/AHS/ASC structures, structural dynamics and materials conference (p. 1818).
3. Goodfellow, I., Bengio, Y., & Courville, A. (2016). Deep learning. MIT press.
4. Wang, H., Lei, Z., Zhang, X., Zhou, B., & Peng, J. (2019). A review of deep learning for renewable energy forecasting. Energy Conversion and Management, 198, 111799.
5. Nakamoto, S. (2008). Bitcoin: A peer-to-peer electronic cash system. Decentralized Business Review, 21260.
